Binder – Drying and Heating Chambers – Series ED Classic.Line – With natural convection
The strengths of a BINDER ED series drying chamber include routine drying and sterilization tasks up to 300 °C. Thanks to the natural convection, all thermal processes which use this drying chamber are highly efficient. The ED series ensures fast, uniform drying.
Key Features
- Uniform drying conditions thanks to APT.line™ technology
- Identical test conditions throughout the chamber interior independent of sample size and quantity
- Outstanding thermal insulation saves operation costs
Technical Specifications

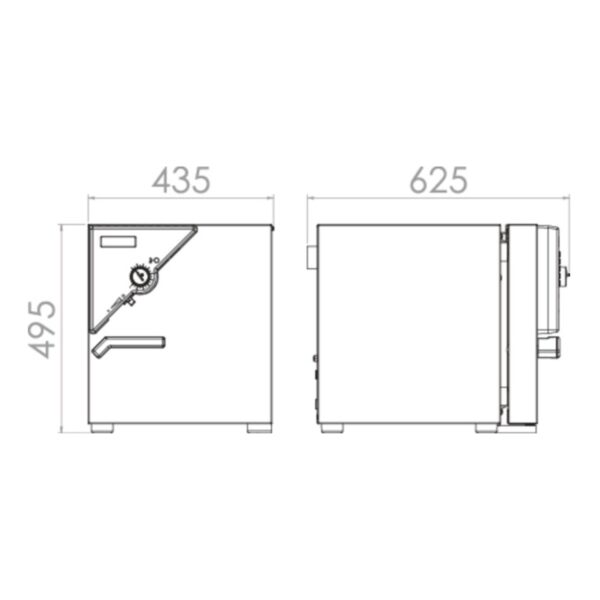

| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| ED 23 | 435 x 495 x 520 mm | 222 x 330 x 300 mm | 27 kg | 20 L |

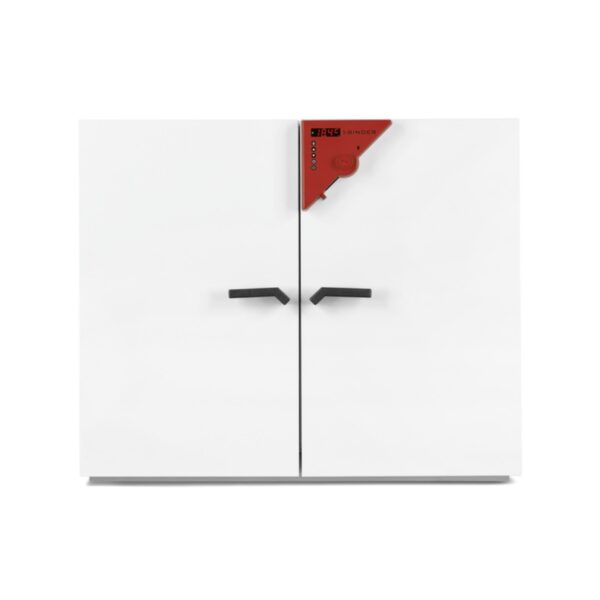

| ED 400 | 1235 x 1025 x 765 mm | 1000 x 800 x 520 mm | 125 kg | 400 L |
Available Models
- Temperature range: room temperature plus 5 °C to 300 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
- Temperature range: room temperature plus 5 °C to 300 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer functions
- 2 chrome-plated racks
- Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Multi Management Software APT-COM™
Key Industries
- Education & Academics
- Food & Beverage
- Pharmaceutical
- Service
