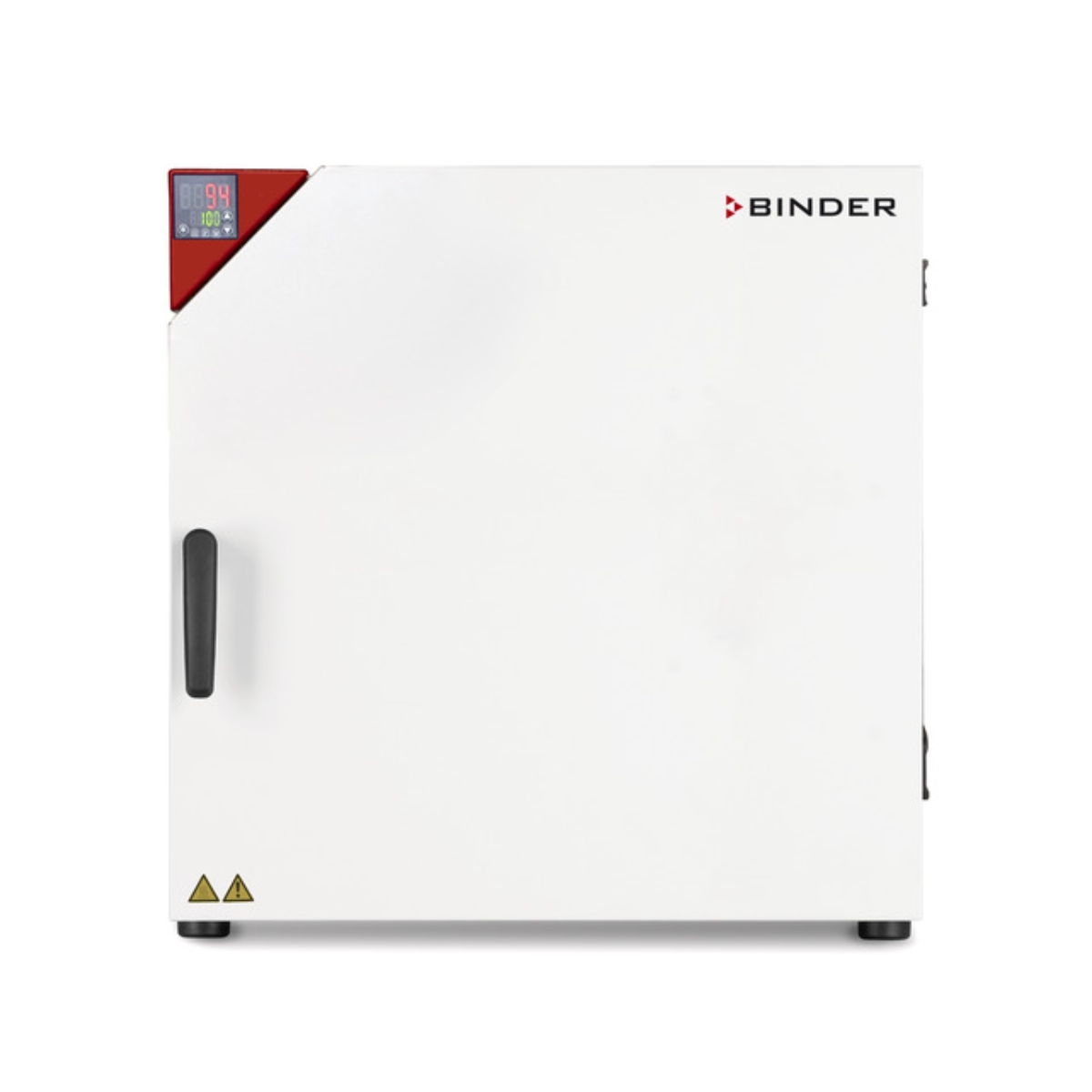

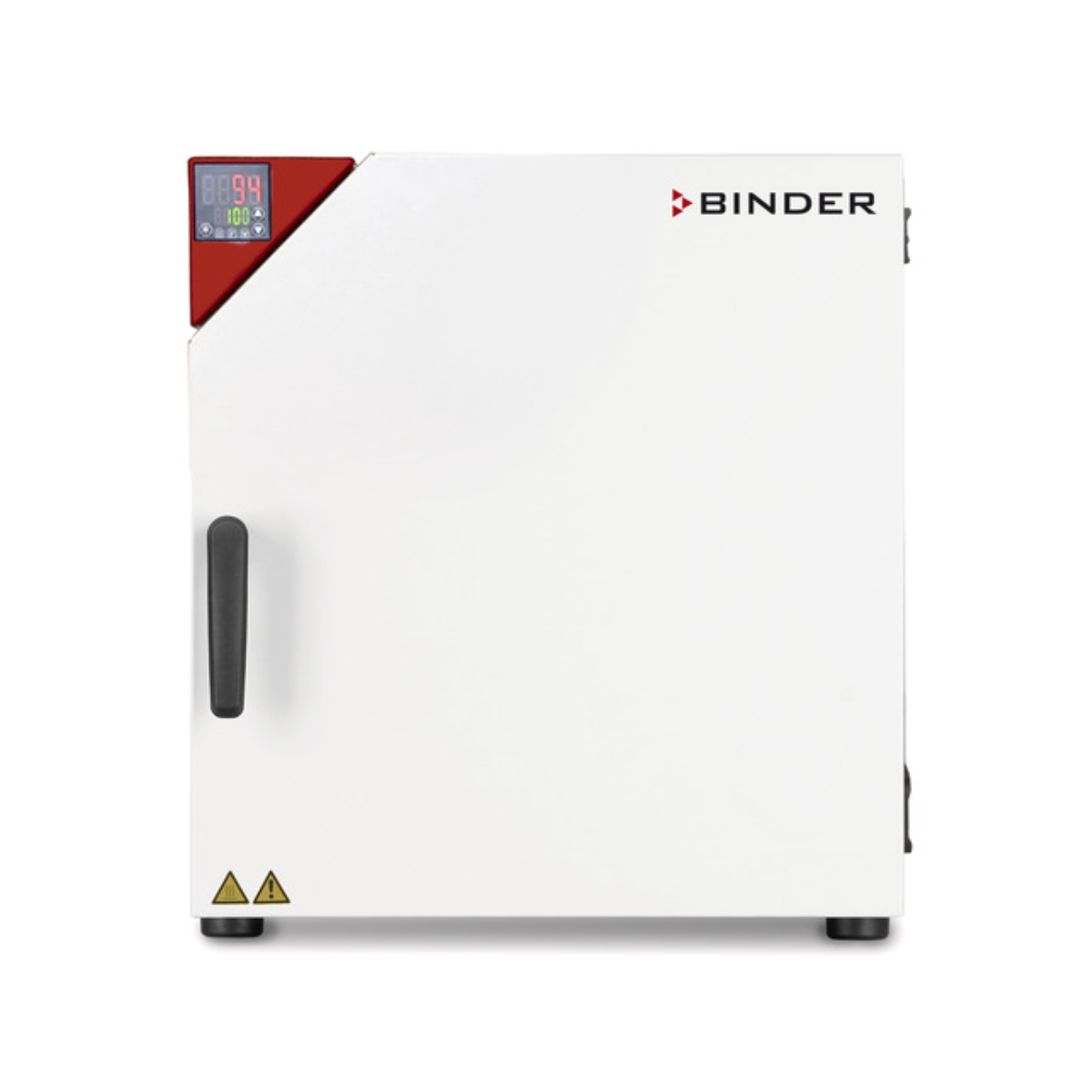

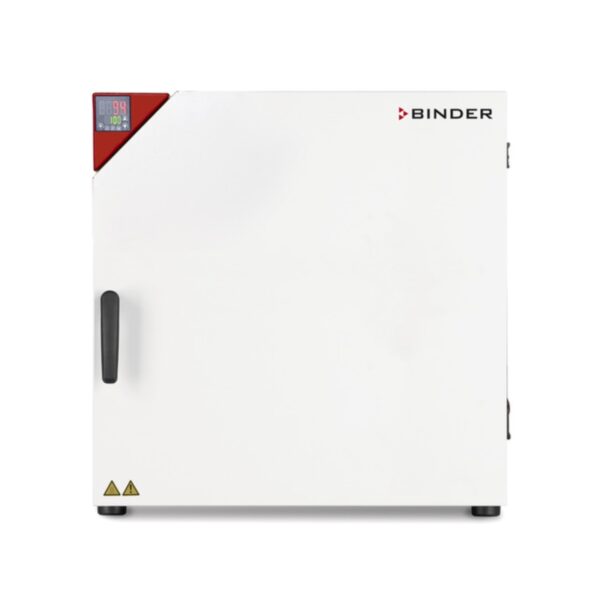

Binder – Drying and Heating Chambers – Series ED-S Solid.Line – With natural convection
The new products in the Solid.Line impress with their tried-and-tested BINDER quality and reliability. They are suited to drying and heating. The attributes of the Solid.Line are geared towards the application in question and therefore used in research and quality assurance.
Key Features
- Easy handling
- Accurate temperature control
- Simple and ergonomic door opening
Heating Chambers With A Wide Eange of Applications
BINDER heating chambers meet the requirements for a scientific laboratory test chamber in every respect, with their outstanding temperature accuracy, homogeneous heat distribution, and residue-free drying being the most impressive highlights. Characterized by a robust and durable quality, these units also comply with key safety standards, including for drying flammable substances. All of the parts in BINDER heating chambers can be cleaned with ease, reducing the risk of undesirable contamination to a minimum.
With BINDER heating chambers, you can rest safe in the knowledge that you will be getting top quality and ease of operation. They can be individually programmed, so they can be adjusted precisely to suit different tasks and projects. Consistent test conditions provide high levels of process reliability. The extensive choice of program functions makes these heating chambers suitable for a wide range of applications within industry, science, and research.
Technical Specifications

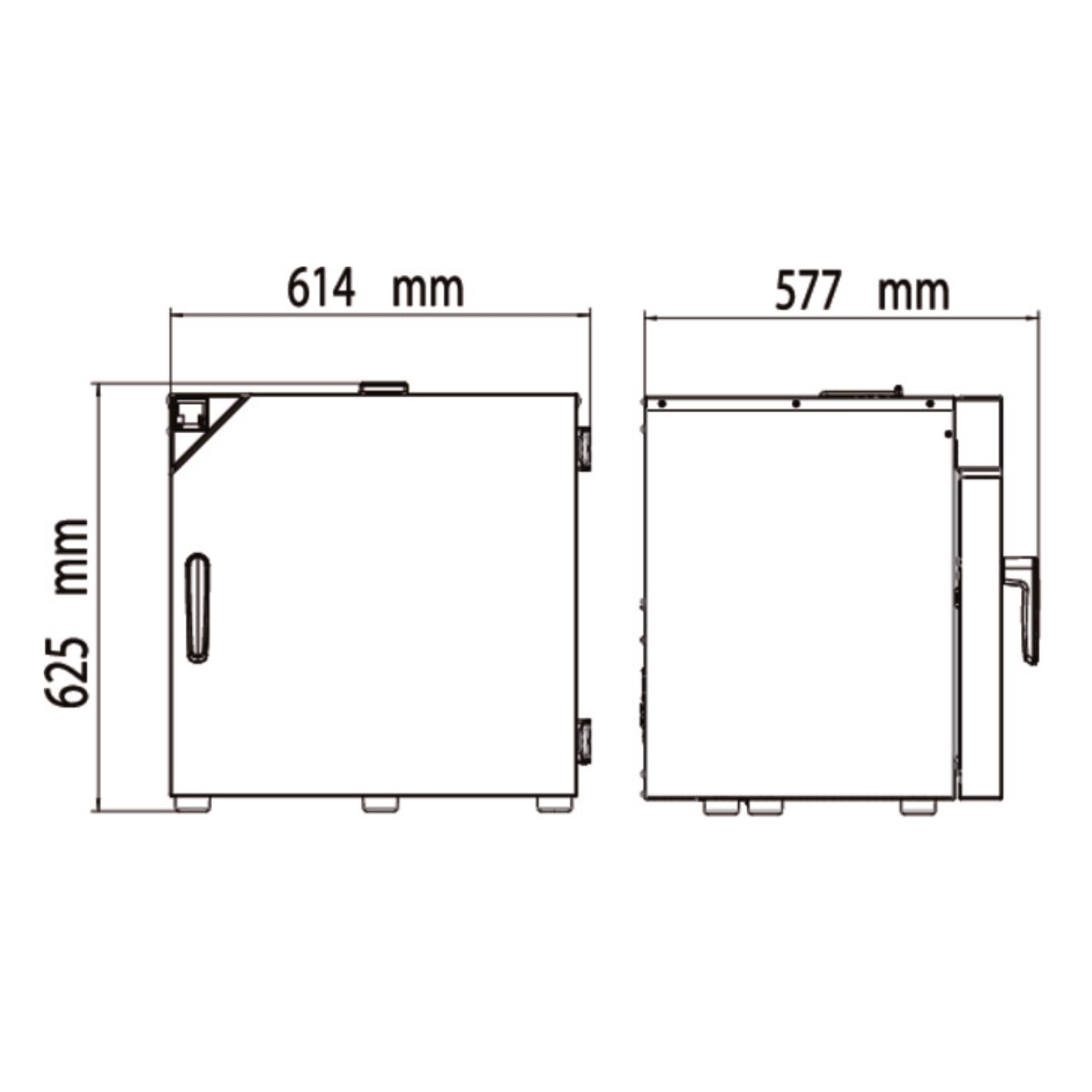

| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |

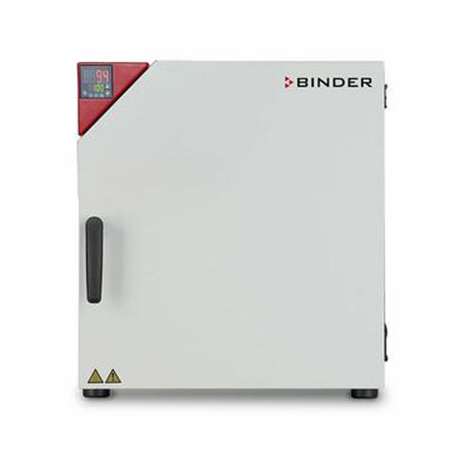

| ED-S 56 | 614 x 625 x 577 mm | 400 x 440 x 350 mm | 36 kg | 62 L |

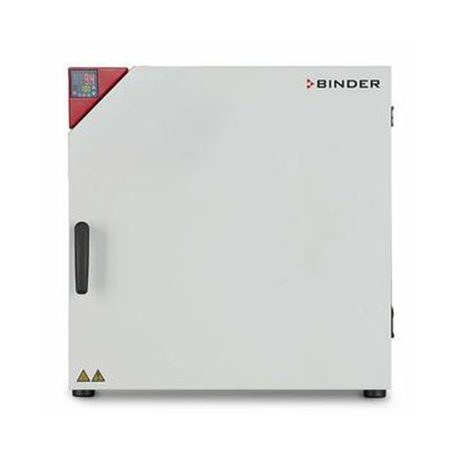

| ED-S 115 | 764 x 735 x 616 mm | 550 x 550 x 390 mm | 53 kg | 118 L |
Available Models
- Temperature range: ambient temperature +7 °C to 250 °
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer function
- 1 chrome-plated rack, incl. shelf supports
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- Temperature range: ambient temperature +7 °C to 250 °C
- APT.line™ preheating chamber technology
- Natural convection
- Adjustable exhaust air flap
- Controller with timer function
- 1 chrome-plated rack, incl. shelf supports
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
Multi Management Software APT-COM™
Binder From the Inside – See What Happens Behind The Scene
Key Industries
- Education & Academics
- Food & Beverage
- Pharmaceutical
- Service
Brand
With 22,000 series production machines supplied each year globally, family company BINDER is now one of the leading experts on environmental simulation chambers. For over 30 years at our German site in Tuttlingen, we have developed and produced premium products which combine superior technology, first-class advice, and exemplary service. These three factors are symbolized by the three red triangles that make up our logo – and our customers appreciate the benefits every day through the outstanding results of their work.
