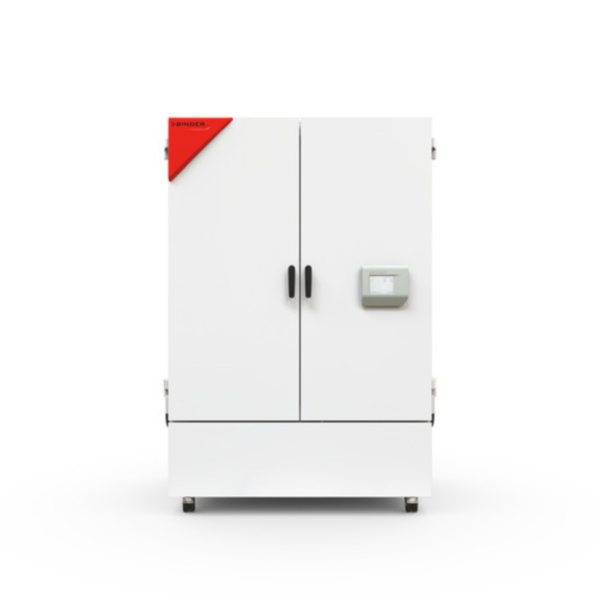

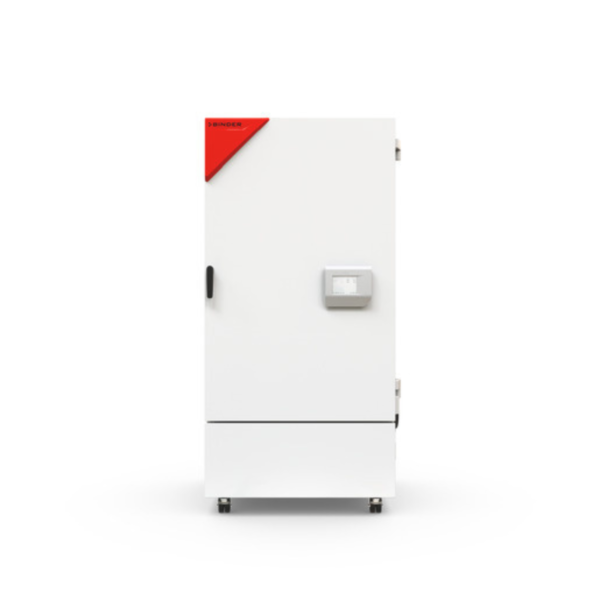

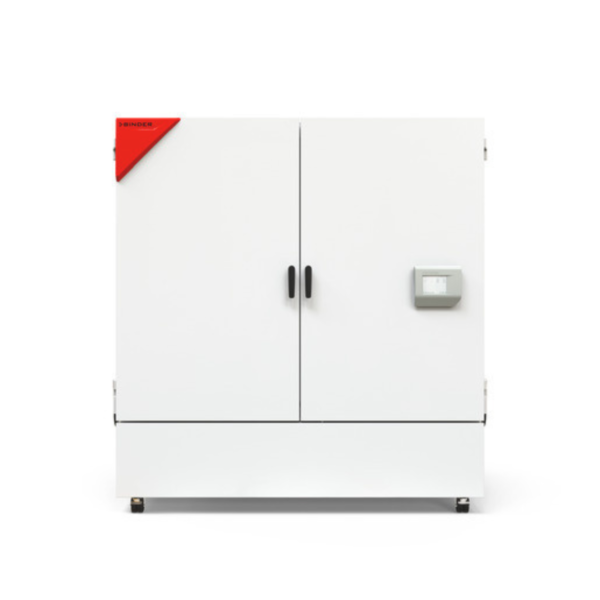

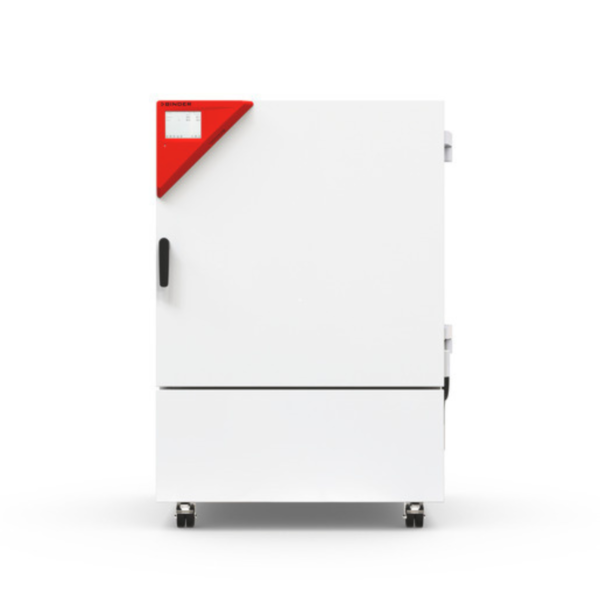

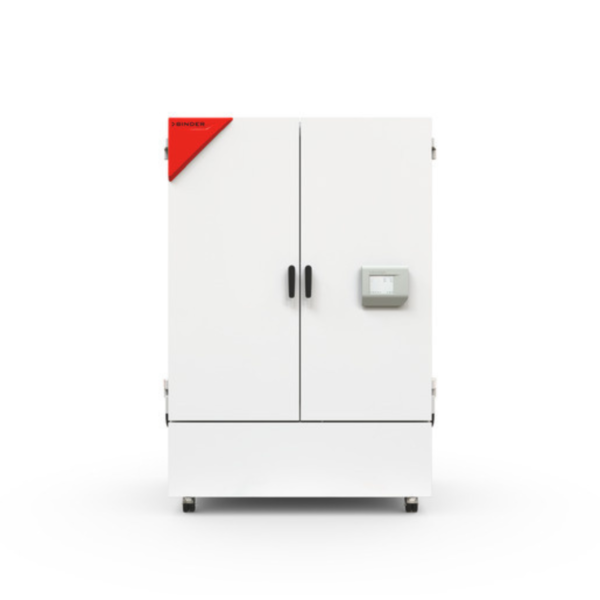

Binder – Cooling Incubators – Series KB – With Compressor Technology

The new climate chambers and cooling incubators from BINDER provide maximum precision for completely reliable, reproducible laboratory results.

Inquiry Now

Overview

Features

Specifications

The KB Series combines exceptional performance with low energy consumption. Additionally, every BINDER refrigerated incubator offers true added value with its exemplary environmental sustainability.

The most versatile among the refrigerated incubators for microorganisms: The BINDER KB series cooling incubator controls temperature ranges of 0 °C to +70 °C. With its comprehensive program functions, this refrigerated incubator offers a wide range of capabilities and delivers reproducible test results.

The powerful virtuoso in cooling incubators for microorganisms: KB units are able to incubate with exceptional precision even when fully loaded, feature a hot-air disinfection routine, and can be programmed for weekend operation with ease. The new KB unit consumes as much as 40% less energy than the previous model.

Key Features

Concentrated cooling power: Temperature range from 0°C to +70°C for demanding tests.
Unlimited flexibility: CO₂ control, ICH and LED plant light with flexible retrofit options – at any time.
Modularity that grows with you: A wide range of customizable equipment options for today and tomorrow.
New standards in energy efficiency: Saves 40% of energy costs and reduces CO2 emissions.

Technical Specifications

Model	Housing dimensions not incl. fittings and connections (W x H x D)	Internal dimension (W x H x D)	Net weight	Interior volume
KB 23	435 x 620 x 520 mm	222 x 330 x 277 mm	44 kg	20 L
KB 53	635 x 835 x 580 mm	400 x 400 x 330 mm	78 kg	53 L
KB 115	835 x 1025 x 650 mm	600 x 480 x 400 mm	106 kg	115 L
KB 240	925 x 1465 x 800 mm	650 x 785 x 485 mm	171 kg	247 L
KB 400	925 x 1950 x 805 mm	650 x 1270 x 485 mm	221 kg	400 L
KB 720	1250 x 1925 x 885 mm	970 x 1250 x 576 mm	309 kg	698 L

Available Models

Temperature range: 0 °C to 100 °C
APT.line™ preheating chamber technology
Cooling with compressor cooling unit
Adjustable fan speed
Controller with time-segment and real-time programming
Elapsed time indicator
Inner door made of tempered safety glass
2 stainless steel racks
Stackable
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm

Temperature range (Models 53, 115, 240, 400, 720): -5 °C to 100 °C
APT.line™ preheating chamber technology
Refrigeration with compressor refrigerated unit
Door heating system from 240 liters
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
Units up to 115 liters are stackable
Access port with silicone plug from 240 liters
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet

Temperature range (Models 53, 115, 240, 400, 720): -5 °C to 100 °C
APT.line™ preheating chamber technology
Refrigeration with compressor refrigerated unit
Door heating system from 240 liters
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
Units up to 115 liters are stackable
Access port with silicone plug from 240 liters
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet

Temperature range (Models 53, 115, 240, 400, 720): -5 °C to 100 °C
APT.line™ preheating chamber technology
Refrigeration with compressor refrigerated unit
Door heating system from 240 liters
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
Units up to 115 liters are stackable
Access port with silicone plug from 240 liters
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet

Temperature range (Models 53, 115, 240, 400, 720): -5 °C to 100 °C
APT.line™ preheating chamber technology
Refrigeration with compressor refrigerated unit
Door heating system from 240 liters
Adjustable fan speed
Controller with time-segment and real-time programming
Inner door made of tempered safety glass
2 stainless steel racks
Units up to 115 liters are stackable
Access port with silicone plug from 240 liters
Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
Computer interface: Ethernet
