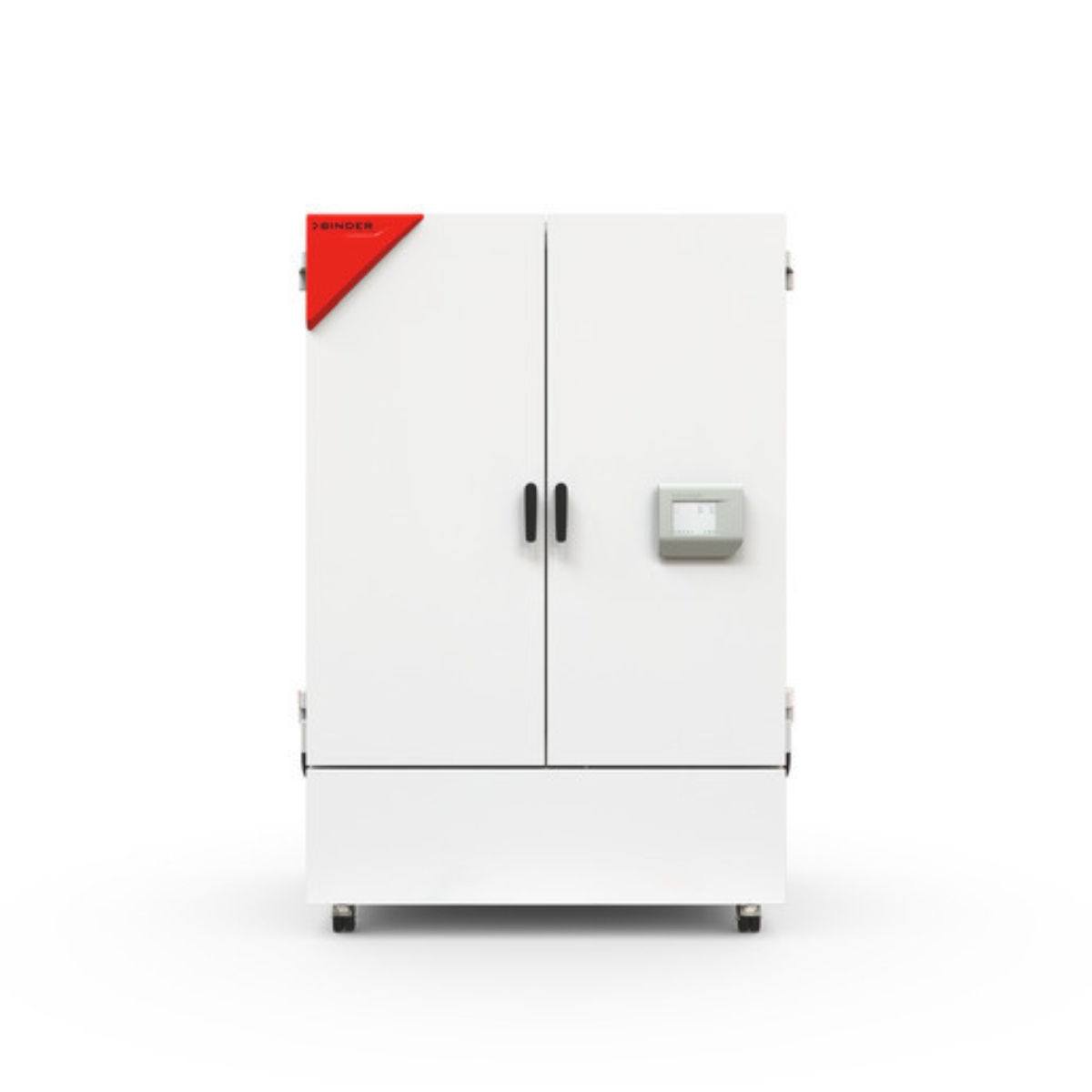

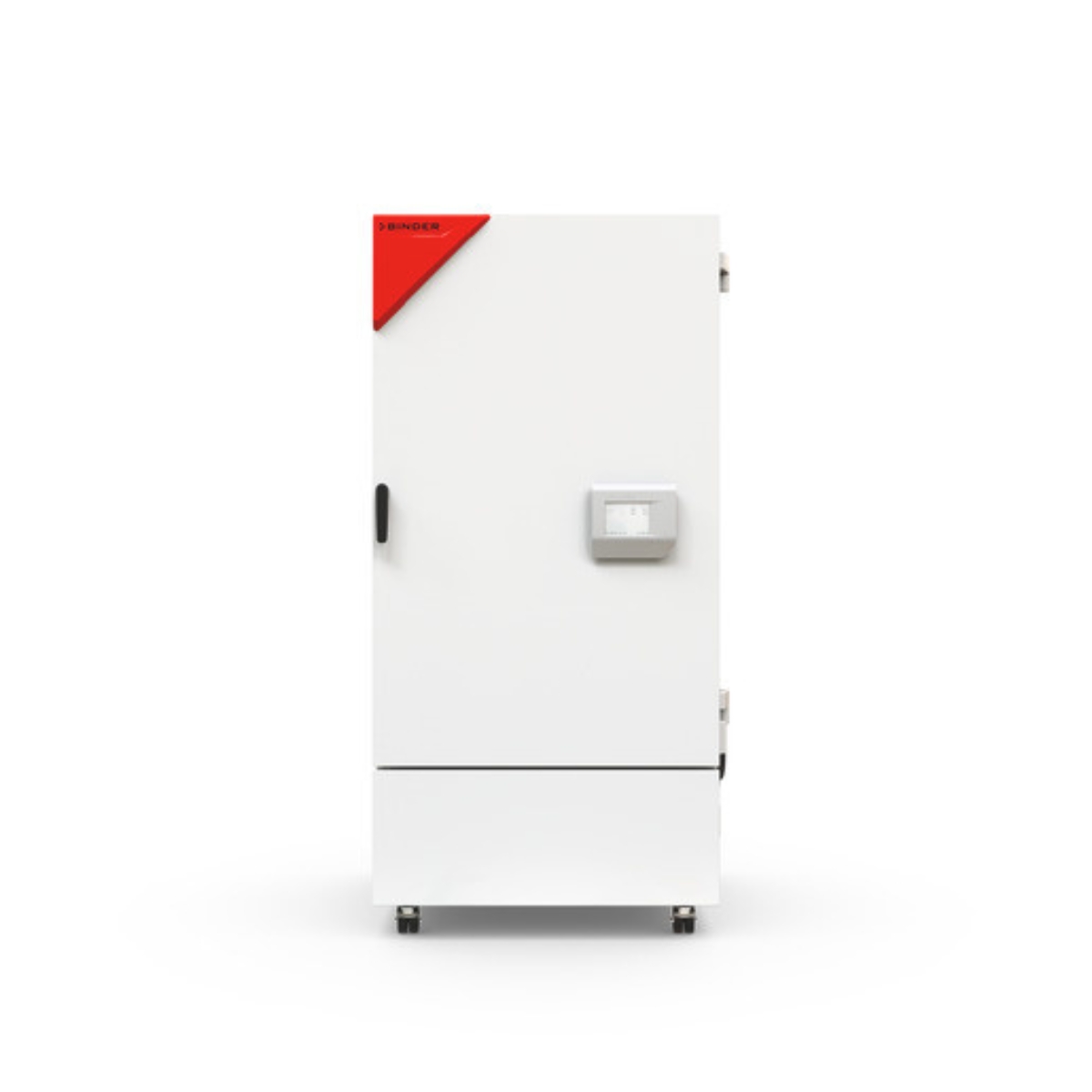

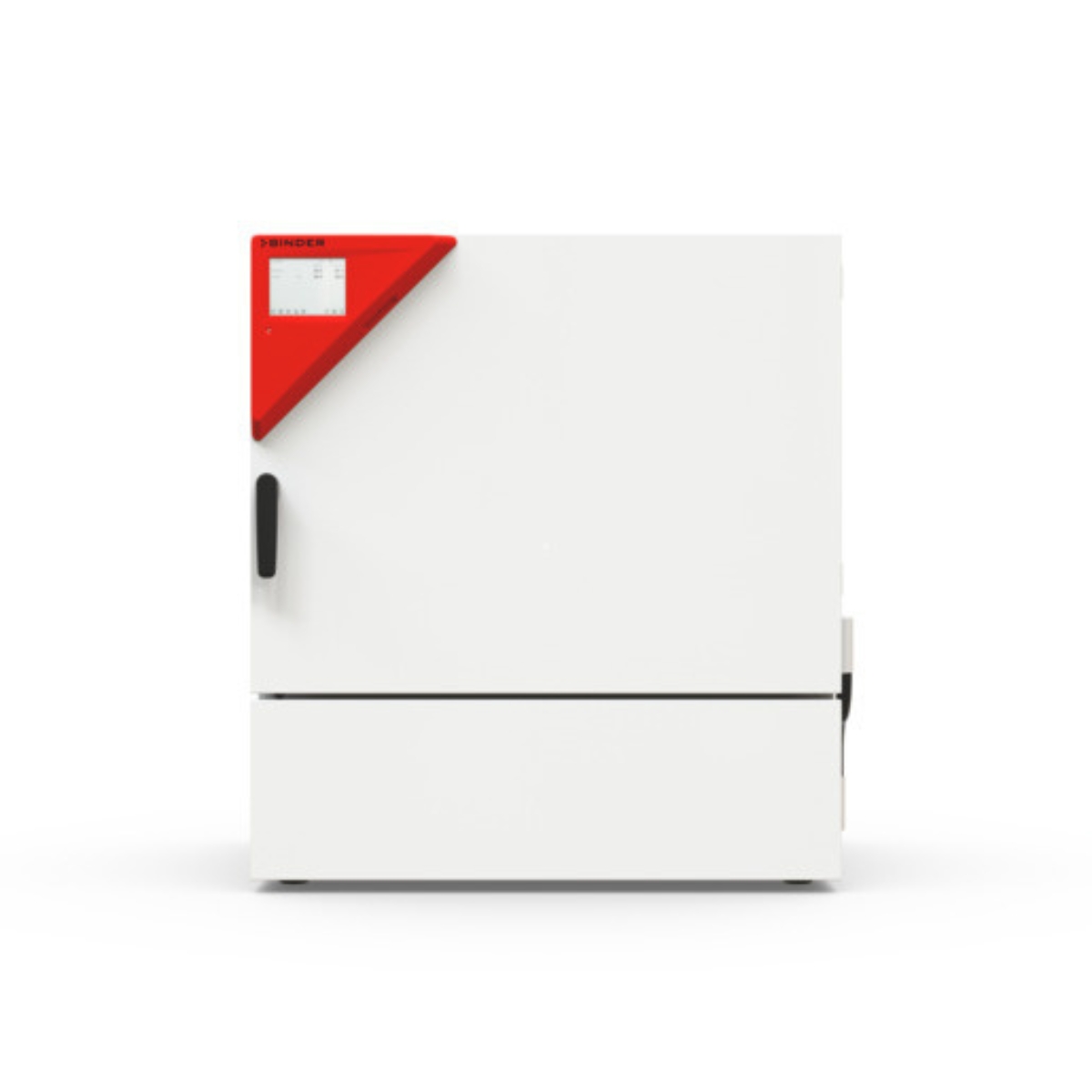

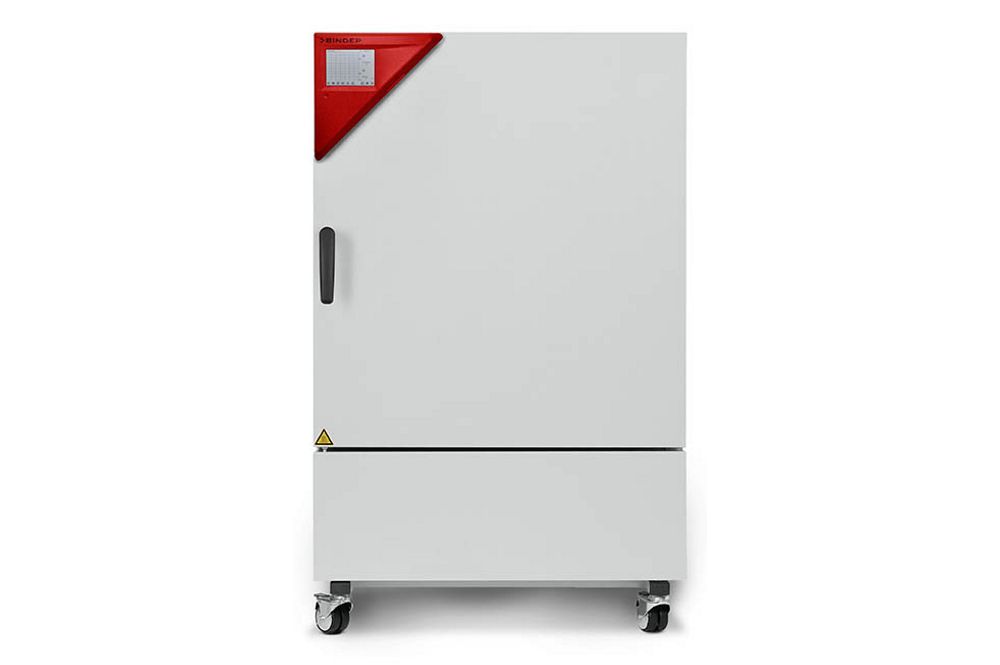

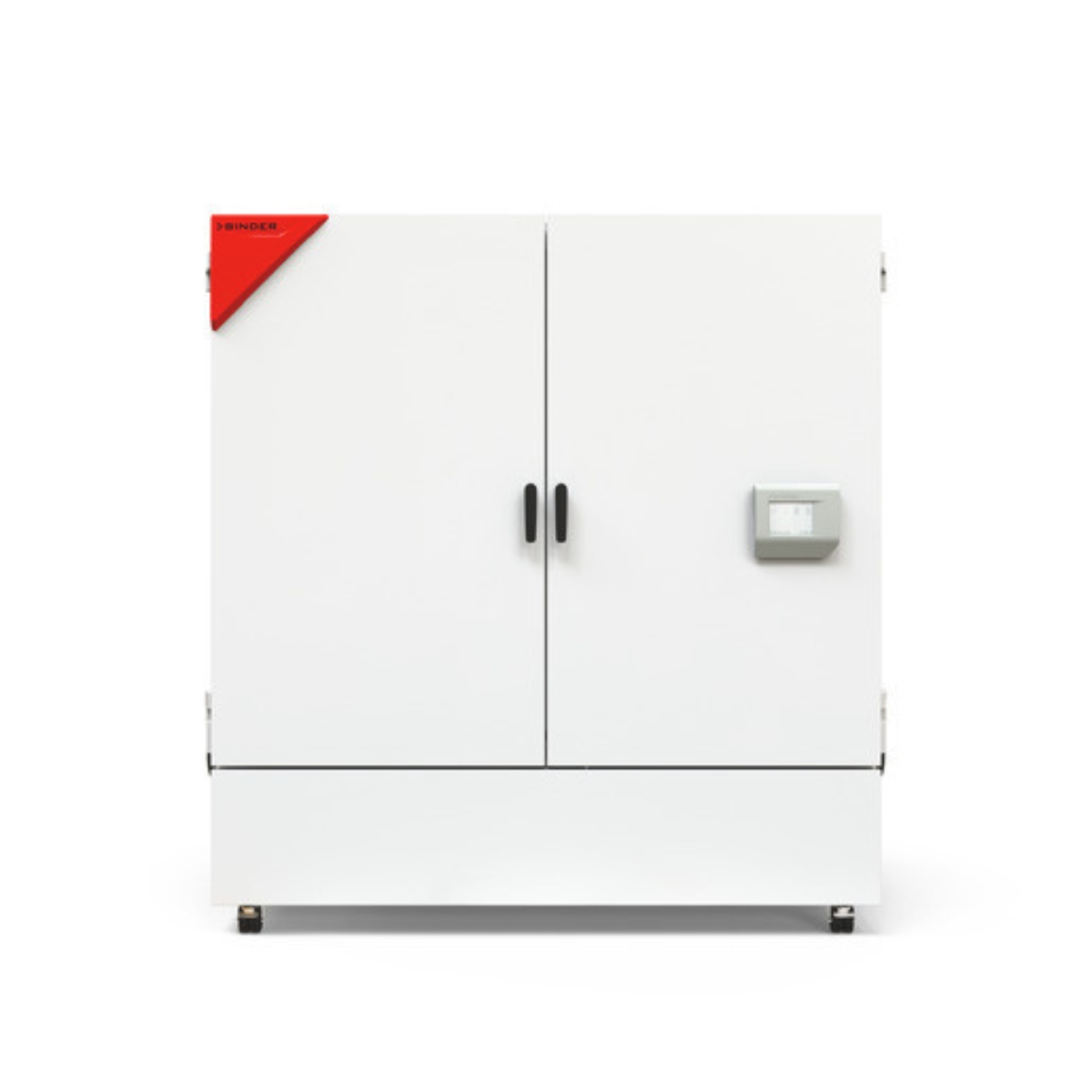

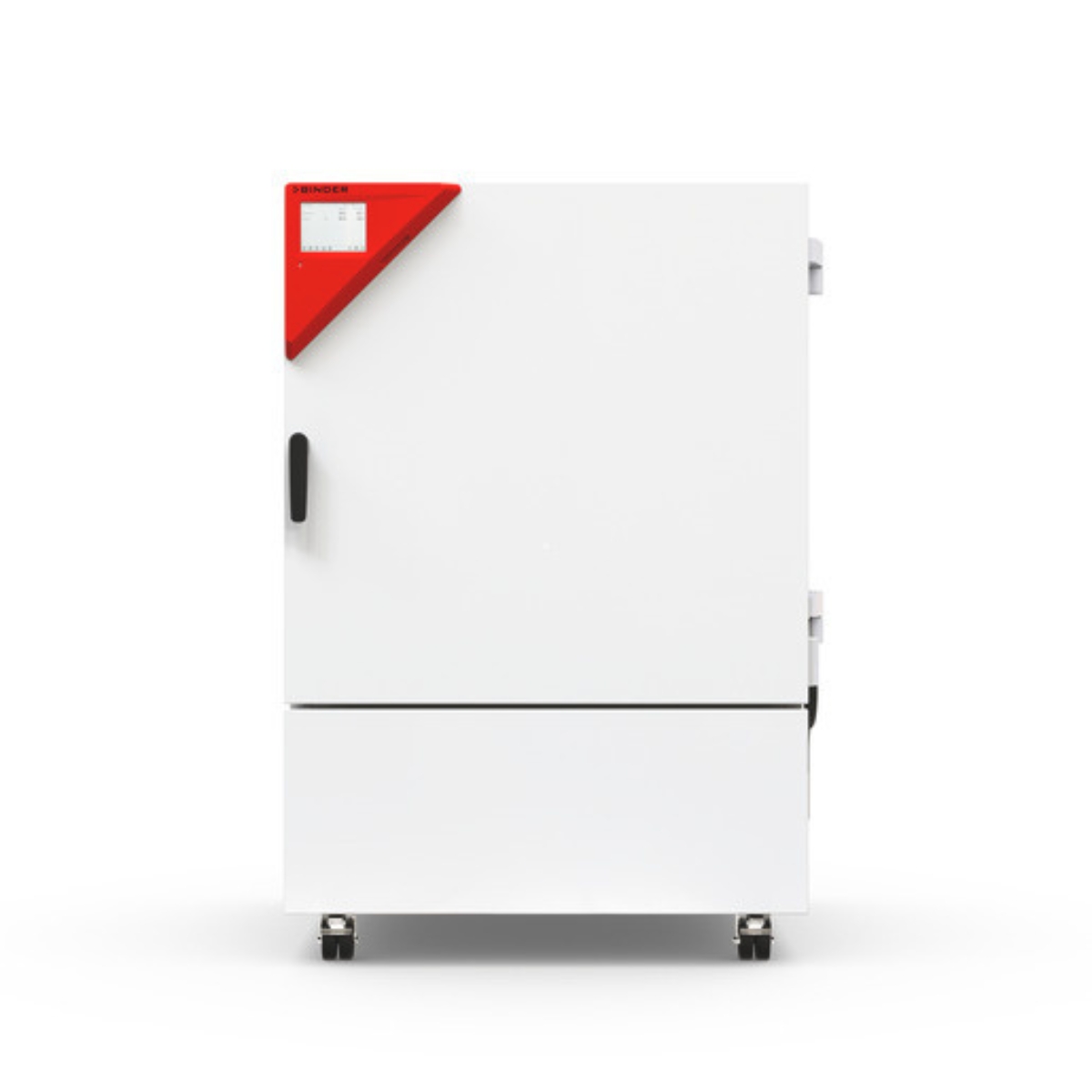

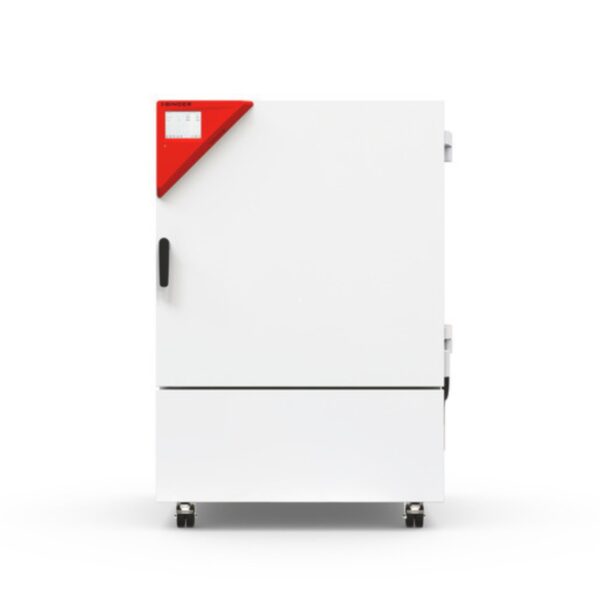

Binder – Constant Climate Chambers – Series KBF – With Large Temperature / Humidity Range
The BINDER KBF is the specialist for unconditionally reliable stability testing and precise maintenance of constant climate conditions. From programming to documentation, this humidity test chamber meets all critical requirements.
Particularly suitable for pharmaceutical tests within a temperature and humidity range of 0 °C to +70 °C and 10% to 80% RH.
Key Features
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| KBF 115 | 880 x 1050 x 650 mm | 600 x 483 x 351 mm | 128 kg | 102 L |
| KBF 240 | 925 x 1460 x 800 mm | 650 x 785 x 485 mm | 189 kg | 247 L |
| KBF 720 | 1250 x 1925 x 890 mm | 973 x 1250 x 576 mm | 312 kg | 700 L |
| KBF 1020 | 1250 x 1925 x 1145 mm | 976 x 1250 x 836 mm | 379 kg | 1020 L |
Available Models
Technical Specifications
| Max. heat compensation at 40 °C [W] | 200 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range | 0…70 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 200…240 |
| Unit fuse [A] | 16 |
| Depth net [in] | 25.61 |
| Height net [in] | 41.4 |
| Width net [in] | 34.67 |
- Temperature range: 0 °C to 70 °C
- Humidity range: 10 % to 80 % RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- BINDER Multi Management Software APT-COM™ Basic Edition
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Inner chamber made of stainless steel
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
Technical Specifications
| Max. heat compensation at 40 °C [W] | 300 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range | 0…70 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 200…240 |
| Unit fuse [A] | 16 |
| Depth net [in] | 31.52 |
| Height net [in] | 57.5 |
| Width net [in] | 36.45 |
- Temperature range: 0 °C to 70 °C
- Humidity range: 10 % to 80 % RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- BINDER Multi Management Software APT-COM™ Basic Edition
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Inner chamber made of stainless steel
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes, from 240 liters
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
Technical Specifications
| Max. heat compensation at 40 °C [W] | 600 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range | 0…70 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 200…240 |
| Unit fuse [A] | 16 |
| Depth net [in] | 35.07 |
| Height net [in] | 75.8 |
| Width net [in] | 49.3 |
- Temperature range: 0 °C to 70 °C
- Humidity range: 10 % to 80 % RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- BINDER Multi Management Software APT-COM™ Basic Edition
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Inner chamber made of stainless steel
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes, from 240 liters
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
Technical Specifications
| Max. heat compensation at 40 °C [W] | 600 |
| Temperature fluctuation [± K] | 0.5 |
|---|---|
| Temperature range | 0…70 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 200…240 |
| Unit fuse [A] | 16 |
| Depth net [in] | 45.1 |
| Height net [in] | 75.8 |
| Width net [in] | 49.3 |
- Temperature range: 0 °C to 70 °C
- Humidity range: 10 % to 80 % RH
- APT.line™ preheating chamber technology
- Humidity regulation with capacitive humidity sensor and vapor humidification
- Intuitive touchscreen controller with time-segment and real-time programming
- BINDER Multi Management Software APT-COM™ Basic Edition
- Internal data logger, measured values can be read out in open format via USB
- Unit self-test for comprehensive status analysis
- Tight-sealing inner door made of safety glass (ESG)
- Avoidance of glass corrosion by special TIMELESS coating
- Inner chamber made of stainless steel
- 2 stainless steel racks
- Access port with silicone plug, 30 mm, left
- 4 stable castors, two with brakes, from 240 liters
- Class 3.1 independent temperature safety device (DIN 12880) with visual and audible temperature alarm
- Computer interface: Ethernet
- Door heating
