Brookfield – Rheometers
To measure viscosity at a controlled shear rate, at a controlled shear stress or to make a direct yield stress measurement, Brookfield has a Rheometer to meet your need.
Available Models
The Brookfield PVS is a coaxial cylinder, controlled shear rate rheometer used in applications under pressure at temperatures where sample boil-off is a problem.
The PVS is a dynamic coaxial cylinder, controlled shear rate rheometer allowing quick and easy viscosity measurements under pressure at temperatures where sample boil-off is a problem.
The PVS can be used to simulate process conditions for small fluid samples in a laboratory benchtop environment. Applications include chemical compounds containing volatile materials, oil industry, drilling muds and fracturing fluids, processed foods, polymers and paints. Any test sample requiring absolute viscosity measurement under totally enclosed conditions is a viable candidate.
Key Features
- Portable site-to-site mobility with 1′ x 1′ x 2′ instrument footprint
- Rheovision software for automation and control of all test parameters
- Designed to operate in severe environments with Hastelloy cups and bobs standard
- Quick and easy to operate
- Measures samples from vacuum to high pressure of up to 1000 psi
- Safety relief valve included
- Measures under temperature conditions: -40°C to +260°C
- Simulation of In-Process conditions
- Robust motor capable of speeds up to 1000 RPM
- Outside cylinder rotates at shear rates up to 1700 sec-1, spindle inside remains stationary
- Available with triple annulus geometry for increased sensitivity when measuring low viscosity fluids
- Quick and easy setup
- Complete with choice of spindle (bob), cup, Rheovision Software and computer
- Industrial standards
The Quick Test functionality of the Brookfield RSO Rheometer allows testing within minutes.
The RSO Stand-alone mode with easy-to-use interface makes it simple for QC Users, it can also help in Viscoelastic measurements by providing R&D users with advanced testing capabilities. RSO Flexibility allows cone/plate and concentric cylinder in a single instrument.
Key Features
- Controlled shear stress/shear rate operation makes it easy to study static yield to flow curve and visco- elastic behaviour.
- User-friendly Touch Screen and graphical display for stand-alone operation.
- Quick Connect Coupling System for easy spindle attachment.
- Instrument flexibility allows for cone/plate and concentric cylinder in one.
- Very Small Sample Size permits rapid test set up and clean up.
- Spindle Barcode for auto spindle recognition.
- Standalone simplicity for QC users.
- Automatic Gap Setting for quick and easy gap setting.
- Rapid Temperature Control of plate with Peltier option for quick profiling of viscosity vs. temperature.
- Optional Rheo3000 Software allows for PC control and data acquisition/analysis of multiple test files.
Optional Accessories
- Choice of cone or plate spindle geometries (at least one is required)
- Rheo3000 Software
- Viscosity Standards
- Choice of Thermal Barrier
- Coaxial Cylinder
- Temperature Bath

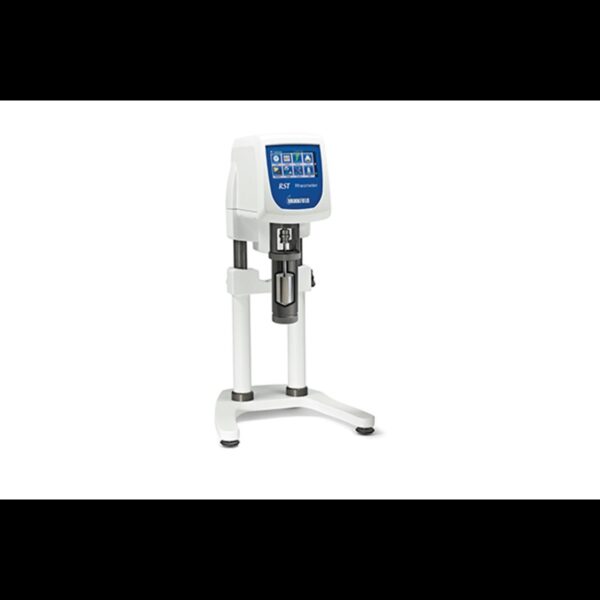

Rheological evaluation through controlled stress and controlled rate measurements offer superior viscosity profiling, thixotropic response, yield stress determination and creep analysis. The RST-CC Rheometer offers powerful flow characterization tools including ramp, loop, and single point testing.
A wide range of shear rate, shear stress, and torque provide flexible flow analysis including creep and yield measurement. The RST-CC Rheometer is designed to accommodate the high throughput required of quality control laboratories providing cost effective, worry free operation for a variety of laboratory applications.
Key Features
- Controlled stress/rate operation to analyze comprehensive flow behavior
- Spindle barcode for auto spindle recognition
- Quick and easy automatic or manual gap setting
- Rapid temperature control of plate with Peltier option for quick profiling of viscosity vs. temperature
- User-friendly LCD touch screen with graphical display
- 11 memory slots for structured multi-step test programs
- Auto spindle identity recognition
- Quick connect coupling for easy spindle attachment
- Optional Rheo 3000 Software for PC control and data management
- 21 CFR compliance for controlled user access and data security
- Temperature control from -20°C to180°C with choice of direct immersion in bath or external circulation using the FTKY3 water jacket
The RST-CPS Rheometer is great for cone and plate as well as plate to plate system for small volumes and wide shear rate ranges.
Rheological evaluation through controlled stress and controlled rate measurements provide comprehensive viscosity flow curves, thixotropic response, yield stress determination creep analysis and viscosity vs. temperature profiling.
Key Features
- Controlled stress/rate operation to analyze comprehensive flow behavior
- Spindle barcode for auto spindle recognition
- Quick and easy automatic or manual gap setting
- Rapid temperature control of plate with Peltier option for quick profiling of viscosity vs. temperature
- User-friendly LCD touch screen with graphical display
- 11 memory slots for structured multi-step test programs
- Auto spindle identity recognition
- Quick connect coupling for easy spindle attachment
- Optional Rheo 3000 Software for PC control and data management
- 21 CFR compliance for controlled user access and data security
The RST-SST is a high end, touch screen rheometer that uses vane spindle geometry in both controlled stress and controlled rate modes to characterize creep behavior as well as yield stress and viscosity profiles.
Key Features
- Controlled stress/rate operation to analyze comprehensive flow behavior
- Capable of measurements in BU units for viscous material such as joint compound
- Easy test methods for materials with particulate, slurries and stiff pastes with data for viscoelastic characteristics such as yield stress, shear modulus and creep
- Quantifies properties like wobbliness, sloppiness, consistency and texture
- Spindle barcode for auto spindle recognition
- Quick and easy automatic or manual gap setting
- User-friendly LCD touch screen with graphical display
- 11 memory slots for structured multi-step test programs
- Auto spindle identity recognition
- Quick connect coupling for easy spindle attachment
- Can also be used with coaxial cylinders for flow curve analysis
- Optional Rheo 3000 Software for PC control and data management
- 21 CFR compliance for controlled user access and data security
Brookfield Cone and Plate Viscometer/Rheometer Gap Setting
Key Industries
- Food & Beverage
- Pharmaceutical
Brand
Brookfield is an ISO 9001:2015 certified manufacturer and the world leader in viscosity, texture analysis, and powder flow instrumentation. For over 85 years, Brookfield products have been considered ideal for testing viscosity, texture, powder flow, moisture, toxic gas, and more. Our team of qualified and dedicated engineers leads the industry in manufacturing best-in-class technology. Our products measure material characteristics and quality in a wide range of industries, including: food and beverages, lubricants, paints and coatings, chemicals, pharmaceuticals, medical devices, cosmetics and personal care products, oil and gas, and more.
Brookfield has an excellent global support system with regional offices in the US, UK, China, Germany, and India. Our global network of trained sales representatives and distributors are available to assist you in selecting the best instruments for your application. Partner with us to experience Material Characterization At Its Best.
