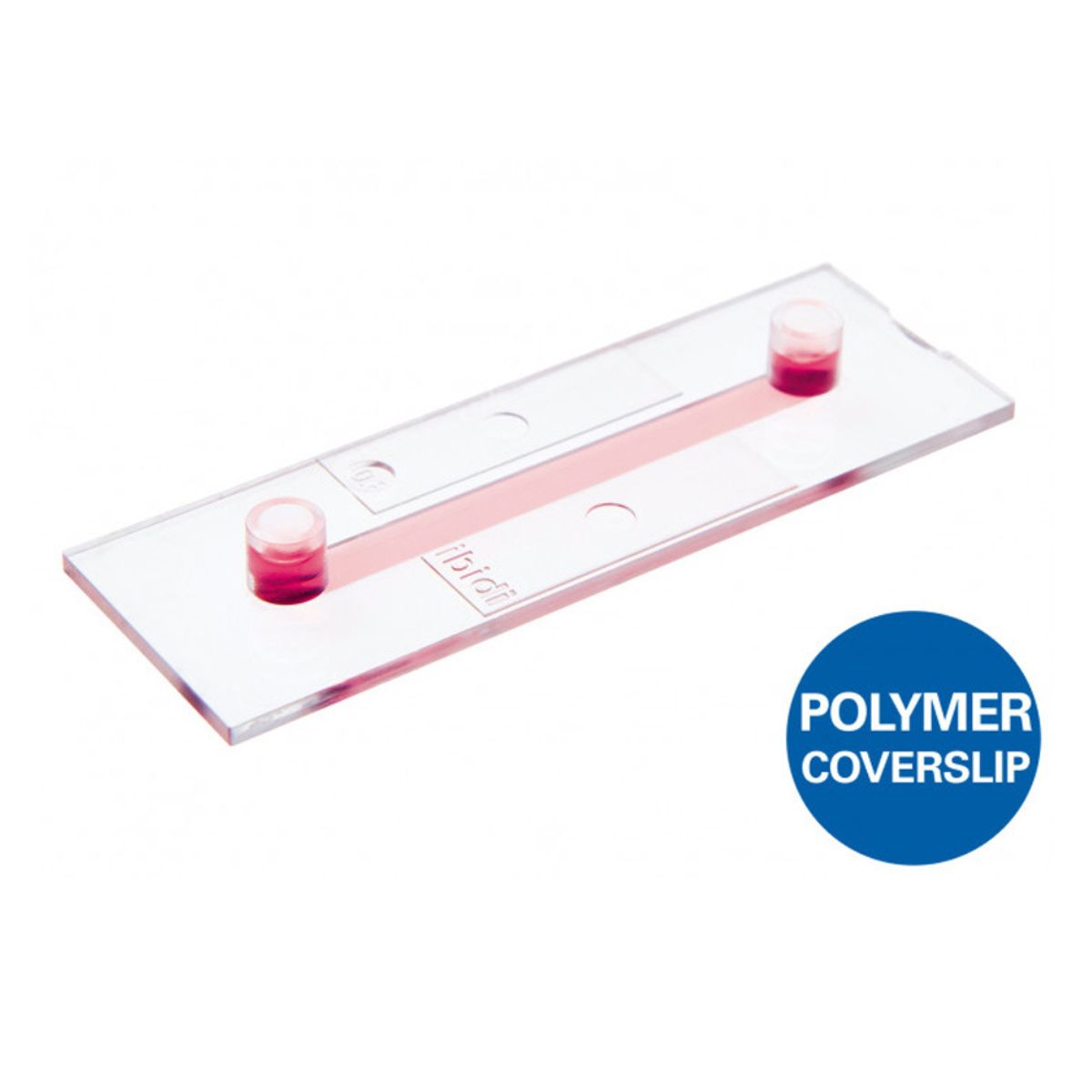

Ibidi – Labware – µ-Slide I Luer
Product outline:
- Channel slides with different heights, volumes, and coatings especially suited for flow applications
- Large area of uniform shear stress
- Easy connection using Luer adapters
- Homogeneous cell distribution with defined optical pathway
Applications
- Adherent cells under flow conditions
- Cell culture (static or stop-flow)
- Simulation of blood vessels with endothelial cells
- High-resolution microscopy of living and fixed cells
Technical Specifications
| Outer dimensions (w x l) | 25.5 x 75.5 mm² | |
| Channel length | 50 mm | |
|---|---|---|
| Channel width | 5 mm | |
| Adapters | Female Luer | |
| Volume per reservoir | 60 μl | |
| Growth area | 2.5 cm2 | |
| Coating area | 5.2 / 5.4 / 5.6 / 5.8 cm2 | |
| Bottom: ibidi Polymer Coverslip | ||
Technical Features
- Standard format with thin bottom for low or high magnification microscopy (up to 100x)
- Large observation area for microscopy
- Channel volumes of 50 μl, 100 μl, 150 μl, or 200 μl
- Defined shear stress and shear rate levels
- Easy connection to tubes and pumps using Luer adapters
- Available as variety pack containing all heights
Brand
ibidi is a leading supplier for functional cell-based assays and advanced products for cellular microscopy. ibidi is located in Gräfelfing, Germany, close to Munich, and the US headquarters, ibidi USA Inc., is located in Fitchburg, Wisconsin.
