Merck – Quality Control – Manifold
Optimize your workflow – Take control of your contamination risks

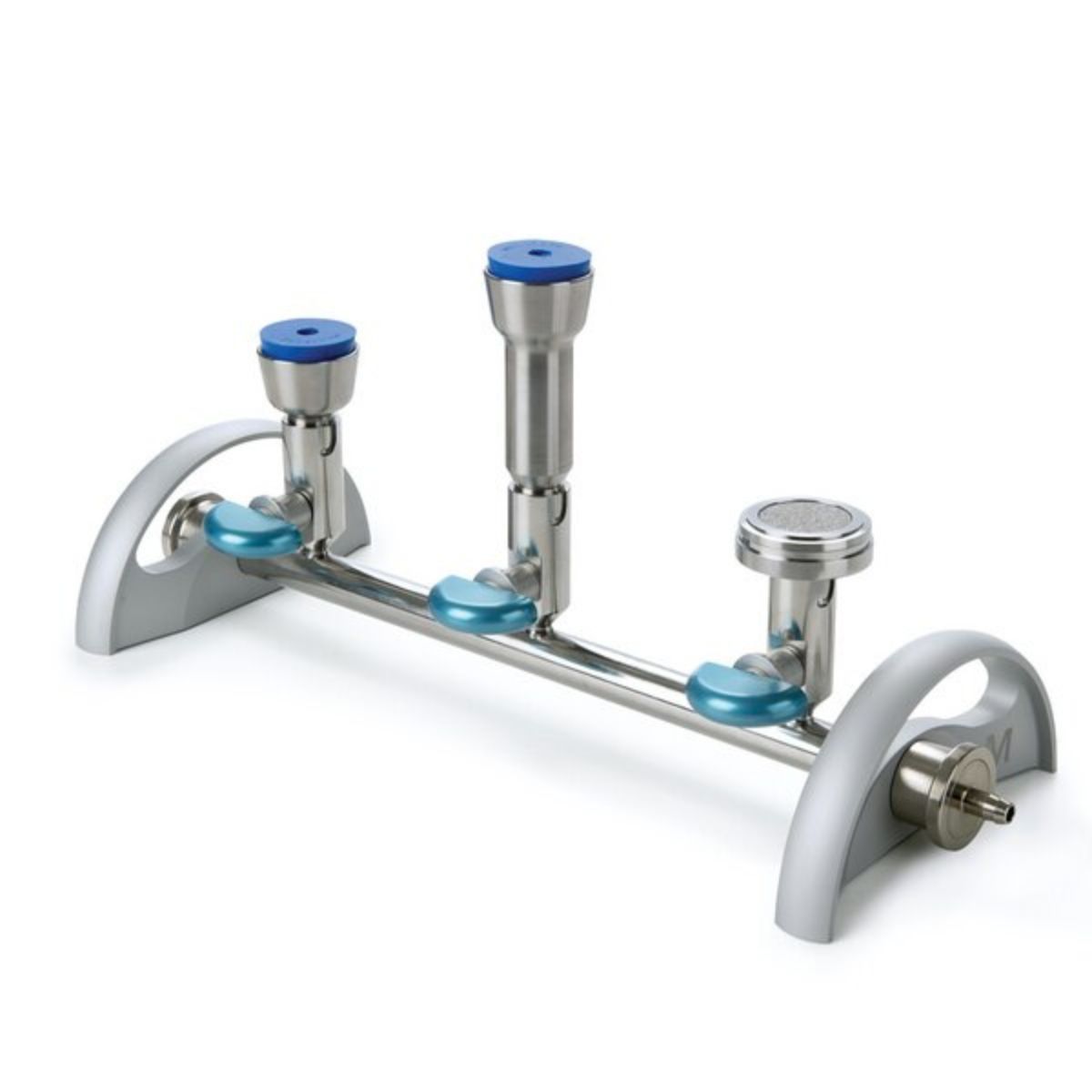

A design to eliminate sources of contamination:
- Easy to prevent biofilms: The new EZ-Fit™ Manifold design eliminates sources of contamination that can cause false positive results: all internal areas are accessible and can be cleaned efficiently and all components can be autoclaved
- Each component can be removed quickly and easily without any additional tools
- A check valve is integrated into the tubing connection to prevent liquid back-flow from the vacuum system
- The 2-way valve prevents the user from accidentally touching the filtration head while opening or closing it
Ease of use:
- A low height design increases comfort, especially when used in laminar flow hoods
- The tubing to the vacuum source can be connected to either side of the manifold
- The total weight is only 2.9 kg for a 3-place manifold! But nonetheless the stability of the manifold on non-flat working areas is ensured by a unique system
- The valves are large and easy to operate
- A new filtration head for Microfil® disposable funnels and membranes improves ease-of-use, reduces maintenance and limits the risk of contamination. A continuous rim allows easy and safe membrane transfer with forceps (reducing the risk of touching the membrane filtration area) and membrane removal with one hand
- Filtration heads are available which accept N°8 stoppers. These fit our devices such as Monitor 55-Plus™ and EZ-Fit® Filtration Unit. One filtration head is also compatible with stainless steel and glass funnels.
Technical Specifications
| Materials of construction | Handles, valve (trigger and knob): Aluminum Connectors, pipe, valve body: 316L stainless steel Connectors, seals and valve seals: Ethylene propylene diene monomer (EPDM) Filtration o-ring: Silicone |
| Dimensions (W*L*H) in mm | 168 mm x 433 mm x 117 mm for a 3P manifold Catalog No. EZFITMIC03 |
|---|---|
| Weight | 2.9 kg kg for a 3-place manifold Cat. No. EZFITMIC03 |
| Tubing connection | Hose barb for 10mm tubing (NPS 3/8 or DN10) |
| Autoclaving conditions | 121°C for 30 min |
| EZ-Fit® Filter Holder Manifolds | |
| Materials | |
| Handles, valve (trigger and knob) | Aluminum |
| Connectors, pipe and valve body | 316L stainless steel |
| Connectors, seals and valve seals | EPDM |
| Filtration O-ring | Silicone |
| Dimensions, mm* | 168 W x 433 L x 117 H |
| Weight, kg* | 2.90E+00 |
| Tubing Connection | Hose barb for 10 mm tubing (NPS 3/8 or DN10) |
| Autoclaving Conditions | 121 °C for 30 min |
| *For a 3-place manifold (cat. no. EZFITMIC03) | |
Key Features

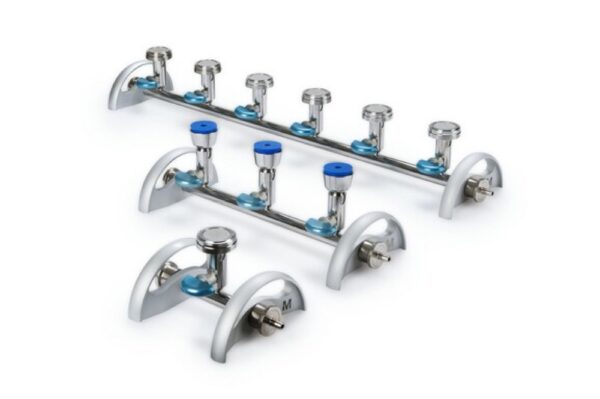

EZ-Fit™ Manifold
- Unique design for easy cleaning and decontamination
- Different filtration heads for both reusable and disposable filtration devices
- Quick-fit connectors for the vacuum tubing
- Low height for ease of use in laminar flow hoods
How to use the EZ-FIT® vacuum manifold for universal membrane filtration
Key Industries
- Food & Beverage
