The InfraCal Model ATR-SP is recommended for measuring oil in water, TPH in soil or FOG in wastewater concentration levels when using hexane, pentane or Vertrel MCA as the extracting solvent. Measurement data obtained with this analyzer will correlate to EPA Method 1664 as both procedures are based on evaporation techniques and measuring the residual oil and grease. The analyzer is equipped with a built-in cubic zirconia horizontal attenuated total reflection (HATR) stainless steel sample stage. The InfraCal 2 ATR-SP is a direct replacement for the original InfraCal HATR-T2 used worldwide for the determination of TOG/TPH in water and soil.
- Minimum Detection Limit Water: 0.3 ppm
- Minimum Detection Limit Soil: 3 ppm
- Method Compares: EPA 1164 & ISO 9377-2
- Solvents: Hexane, pentane, cyclohexane & Vertrel MCA
Technical Specifications
| InfraCal 2 ATR-SP | InfraCal 2 TRANS-SP | InfraCal 2 ATR-B | InfraCal 2 ATR-E | |
|---|---|---|---|---|
| Analytical Wavelength/Wave Number | 3.4 µm, 2930 cm-1 | 3.4 µm, 2930 cm-1 | 5.7 µm, 1745 cm-1 | 9.6 µm, 1045cm-1 |
| Power Requirements | 18 volts DC, 3.3 amps, internal battery pack available | 18 volts DC, 3.3 amps, internal battery pack available | 18 volts DC, 3.3 amps, internal battery pack | 18 volts DC, 3.3 amps, internal battery pack |
| Power Supply | Universal AC/DC provided | Universal AC/DC provided | Universal AC/DC provided | Universal AC/DC provided |
| Weight | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) |
| Dimensions | (17 cm) x 7.8″ (19.8 cm) x 5.2″ (13.2 cm) | (17 cm) x 7.8″ (19.8 cm) x 5.2″ (13.2 cm) | (17 cm) x 7.8″ (19.8 cm) x 5.2″ (13.2 cm) | (17 cm) x 7.8″ (19.8 cm) x 5.2″ (13.2 cm) |
| Suggested Operating Range | 5°C – 40°C | 40°F (5°C) – 110°F (40°C) | 5°C – 40°C | 5°C – 40°C |
| Analysis Time | 10-15 minutes, including extraction process | 10-15 minutes, including extraction process | Less than 30 seconds | Less than 30 seconds |
| Instrument Repeatability | ±0.3 ppm | ±0.1 ppm | 0 – 30%±0.2%, 20 – 100%±1% of biodiesel (FAME) concentration | 0 – 20%±0.2%, 20 – 98%±1% of ethanol in petrol concentration |
| Communication Port | USB | USB, RS 232 | USB, RS 232 | USB, RS 232 |
Available Models
Technical Specifications
| Analytical Wavelength/Wave Number | 3.4 µm, 2930 cm-1 |
| Power Requirements | 18 volts DC, 3.3 amps, internal battery pack available |
|---|---|
| Power Supply | Universal AC/DC provided |
| Weight | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) |
| Dimensions | (17 cm) x 7.8″ (19.8 cm) x 5.2″ (13.2 cm) |
| Suggested Operating Range | 5°C – 40°C |
| For Water | 0.3-2000+ ppm 0.3-15+% |
| For Soil | 3-2000+ ppm 0.3-15+% |
| Analysis Time | 10-15 minutes, including extraction process |
| Instrument Repeatability | ±0.3 ppm |
| Communication Port | USB |
The InfraCal Model ATR-SP is recommended for measuring oil in water, TPH in soil or FOG in wastewater concentration levels when using hexane, pentane or Vertrel MCA as the extracting solvent. Measurement data obtained with this analyzer will correlate to EPA Method 1664 as both procedures are based on evaporation techniques and measuring the residual oil and grease. The analyzer is equipped with a built-in cubic zirconia horizontal attenuated total reflection (HATR) stainless steel sample stage. The InfraCal 2 ATR-SP is a direct replacement for the original InfraCal HATR-T2 used worldwide for the determination of TOG/TPH in water and soil.
- Minimum Detection Limit Water: 0.3 ppm
- Minimum Detection Limit Soil: 3 ppm
- Method Compares: EPA 1164 & ISO 9377-2
- Solvents: Hexane, pentane, cyclohexane & Vertrel MCA
Technical Specifications
| Analytical Wavelength/Wave Number | 5.7 µm, 1745 cm-1 |
| Power Requirements | 18 volts DC, 3.3 amps, internal battery pack |
|---|---|
| Power Supply | Universal AC/DC provided |
| Weight | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) |
| Suggested Operating Range | 5°C – 40°C |
| Measurement Range | 0 – 100% Biodiesel in Diesel |
| Analysis Time | Less than 30 seconds |
| Instrument Repeatability | 0 – 30%±0.2%, 20 – 100%±1% of biodiesel (FAME) concentration |
| Communication Port | USB, RS 232 |
The InfraCal 2 TRANS-SP is recommended for measuring oil in water, TPH in soil or FOG in wastewater concentration levels using the traditional EPA methods 413.2 and 418.1 or ASTM method D7066-04 and Freon-113, hydrocarbon-free grade of perchloroethylene, AK-225, S-316 or other spectroscopic infrared transparent solvent as the extracting solvent. Since the extract is deposited into a 10 mm quartz cuvette cell with Teflon stopper, light end volatile components are retained for measurement. Accurate down to 0.1 ppm.
The InfraCal 2 TRANS-SP, the latest introduction to our easy to use analyzers, uses the same measurement technology as the original InfraCal Model CVH, with added features such as data storage and transfer, multiple calibrations and password protection for instrument settings.
- MDL Water: ;0.1ppm
- MDL Soil: 1ppm
- Solvent(s): Perchloroethylene, S-316, Freon-113
- Method Compares: EPA 1664, ISO 9377-2
- Method Complies: ASTM D7066, EPA 413.2, EPA 418.1
Technical Specifications
| Power Requirements | 18 volts DC, 3.3 amps, internal battery pack |
|---|---|
| Power Supply | Universal AC/DC provided |
| Weight | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) |
| Suggested Operating Range | 5°C – 40°C |
| Measurement Range | 0 – 100% Biodiesel in Diesel |
| Analysis Time | Less than 30 seconds |
| Instrument Repeatability | 0 – 30%±0.2%, 20 – 100%±1% of biodiesel (FAME) concentration |
| Communication Port | USB, RS 232 |
The InfraCal 2 Biodiesel Blend Analyzer for measuring percent biodiesel in diesel is the ideal solution where a quick, accurate, on-site measurement is required and a single, repetitive biodiesel blend analysis is needed. The InfraCal 2 ATR-B is based on proven IR technology, originally developed by Wilks, and used by fuel distributors, blenders, producers and regulatory agencies worldwide. The compact, easy-to-use Biodiesel Blend Analyzer has a measurement range of 0 – 100% biodiesel in diesel. These results are comparable to both ASTM D7371 and EN 14078, laboratory methods that require expensive FTIR Spectrometers.
Samples are applied to a zinc selenide attenuated total reflectance (ATR) sample plate for immediate results. The analysis can be done by non-technical personnel with no formal training and is ideal for lab or field use. The InfraCal2 ATR-B has a touch screen display, internal data storage and transfer, a multi-language interface and password protected settings. The internal battery pack allows for portability and up to 6 hours continuous use, providing results in under a minute at a fuel loading rack, in a laboratory or at a pump in a fueling station.
- Measurement range: 0 – 100% biodiesel
- Instrument repeatability: 0 – 30% +/- 0.2% ; 30-100% +/-1.0%
- Compares to ASTM D7371 & EN 14078
Technical Specifications
| Analytical Wavelength/Wave Number | 9.6 µm, 1045cm-1 |
| Power Requirements | 18 volts DC, 3.3 amps, internal battery pack |
|---|---|
| Power Supply | Universal AC/DC provided |
| Weight | 5.8 lb. (2.6 kg) with battery -7.0 lbs (3.2 kg) |
| Suggested Operating Range | 5°C – 40°C |
| Measurement Range | 0 – 20 & 70 – 98% ethanol in gasoline |
| Analysis Time | Less than 30 seconds |
| Instrument Repeatability | 0 – 20%±0.2%, 20 – 98%±1% of ethanol in petrol concentration |
| Communication Port | USB, RS 232 |
The InfraCal 2 Ethanol Blend Analyzer for measuring percent ethanol in gasoline is the ideal solution where a quick, accurate, on-site measurement is required and a single, repetitive ethanol blend analysis is needed. The InfraCal 2 ATR-E is based on proven IR technology, and used by fuel terminals, laboratories and regulatory agencies worldwide. The compact, easy-to-use InfraCal 2 ATR-E has a measurement range of 0-20 & 70-98%% ethanol in gasoline and an accuracy of +/- 0.2%. These results are comparable to ASTM D4815.
Samples are applied to a zinc selenide attenuated total reflectance (ATR) sample plate and easily cleaned with a cloth & isopropyl alcohol. No solvents requiring special ventilation, expensive waste disposal or difficult to clean cells are needed. The analysis can be done by non-technical personnel with no formal training and is ideal for lab or field use. The InfraCal2 ATR-E has a touch screen display, data storage and transfer, a multi-language interface and password protected settings. The internal battery pack allows for portability and up to 12 hours continuous use, providing results in under a minute at a fuel loading rack, in a laboratory or at a pump in a fueling station.
- Measurement range: 0 – 20 & 70 – 98% ethanol in gasoline
- Instrument repeatability: +/- 0.2%
- Compares to ASTM D4815

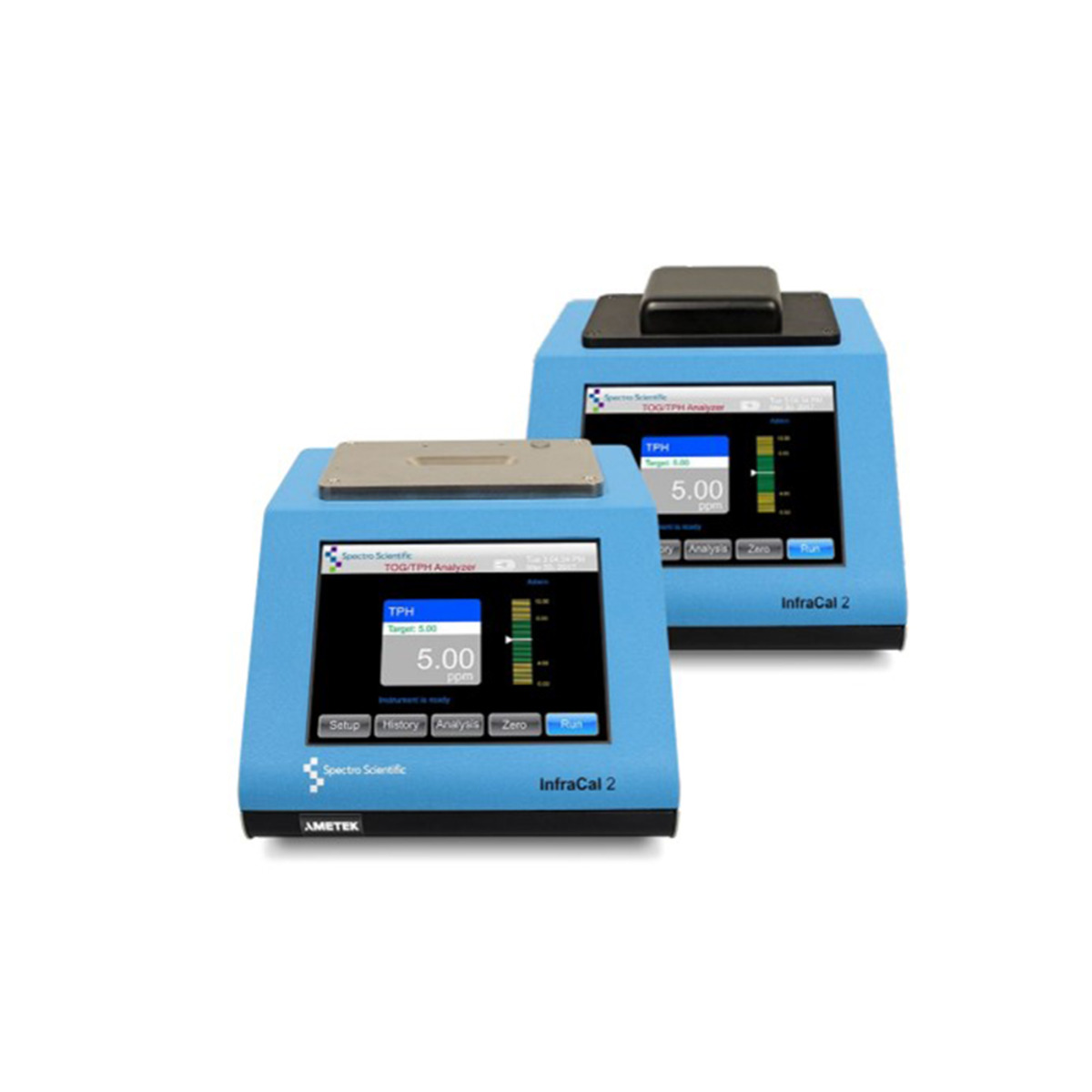

InfraCal 2 Oil in Water Analyzer
Overview of the InfraCal 2 Ethanol Anaylzer

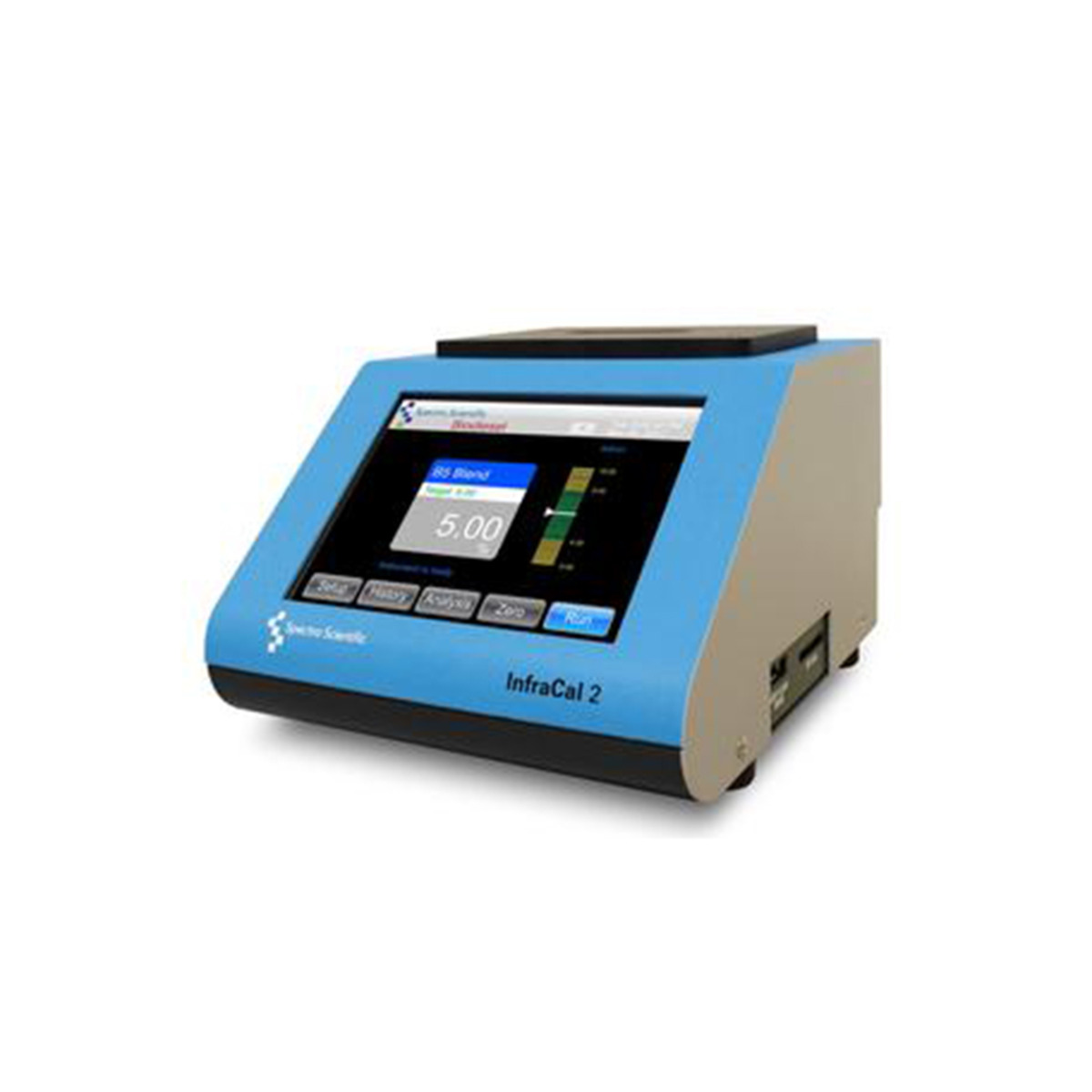

Overview of the InfraCal 2 Biodiesel Analyzer
Brand
Spectro Scientific was founded in 1983 as Spectro Inc. and is one of the largest worldwide suppliers of oil, fuel, and fluid analysis instruments to industry, military and laboratories. With over 8000 instruments sold, and customers on six continents, Spectro Scientific is a leader in the field of condition based maintenance and oil in water analysis. Spectro Scientific, an ISO 9001:2015 company, develops a broad array of fluid analysis instruments for evaluating machine and lubricant condition in the field, in the lab and in highly mobile, handheld applications. The instruments provide critical data about machinery condition and can provide an early warning of equipment failure. Our core businesses are oil and grease analysis, fuel analysis and oil in water analysis for regulatory compliance.
