Stilla Technologies – Digital PCR – Naica 3 Colors System
Stilla® Crystal Digital PCR™ technology for absolute quantification of nucleic acids is based on cutting-edge microfluidic technology that integrates the digital PCR process in a single consumable, reducing the hands-on time and interaction, so users can simply insert the sample and walk away.
The sample is partitioned using a network of microchannels into a large array of individual droplets, also called a droplet crystal. Owing to the next-generation Crystal Digital PCR™ technology, the droplets partitioned are identical in size- yielding results you can trust. PCR then amplifies the fluorescent target in the droplets which can be read for absolute quantification the nucleic acids.
With a combination of powerful imaging, the flexibility to use up to 3 detection channels, and a proprietary software for analysis, Crystal Digital PCR™ is designed to offer an unmatched level of confidence in the digital PCR measurement.
Technical Specifications
| Capacity | Up to 3 chips / run |
| Scan time | < 20 min per run / 3 Sapphire Chips < 60 min per run / 3 Ruby Chips |
| Compatible fluorophores | FAM, Cy®3, HEX, Cy®5 |
| Power Supply | AC input 100-240 V / 400W, 50/60 Hz, 150W |
| Footprint | 44 x 34 x 21 cm |
Key Features
Easy-to-use Solution
- On-chip integrated workflow
- Minimal hands-on time
Flexible Digital PCR
- Up to 3-color target multiplexing
- Two chip formats: from 12 to 48 samples/run
Fast Time-to-results
- Prepare (15 min), Amplify (2 hrs), Read (10-20 min), Analyze (5 min)
Featured Products
Sapphire Chip
Up to 4 samples/run Up to 30,000 droplets/sample For high sensitivity applications
Opal Chip
Up to 16 samples/run Up to 20,000 droplets/sample Desired throughput flexibility

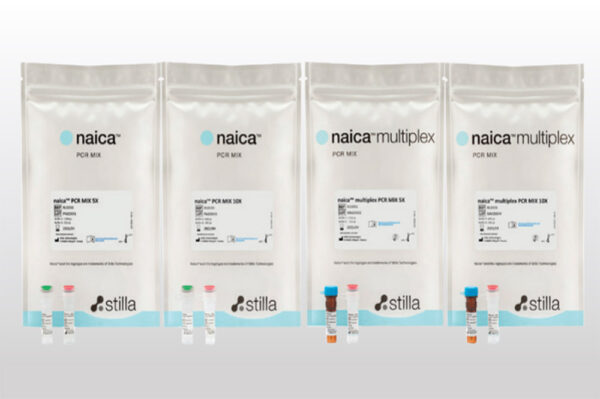

Naica® PCR MIX Reagents
Developed for enhanced performance for Crystal Digital PCR™ on the naica® system

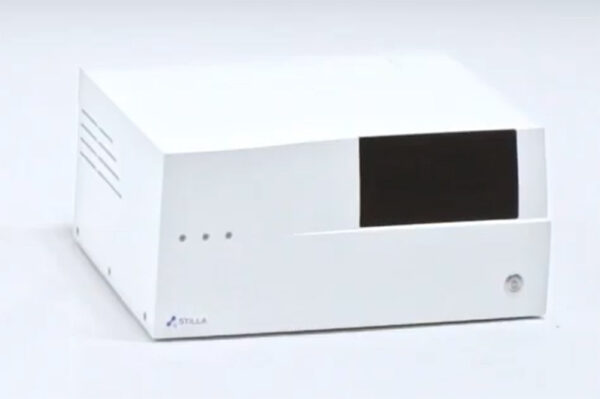

Geode
Thermocycler for partitioning and amplification
Prism3
Capacity: Up to 3 chips/run. Total scan time: 10min. Compatible fluorophores: FAM, Cy®3, VIC, HEX, Cy®5…
Crystal Miner Software
Intuitive software for visual inspection and analysis
The Entire Naica® System Workflow
Crystal Digital PCR™ is Stilla’s next-generation technology for absolute quantification of nucleic acids. Using cutting-edge microfluidic innovations, this technology integrates the digital PCR process in a single consumable.
